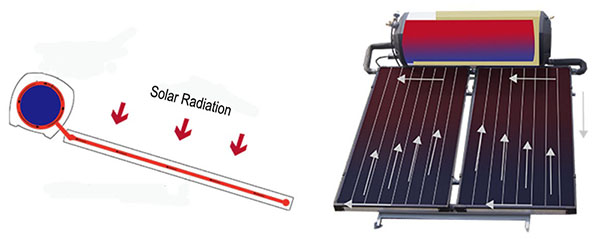

Working principle:

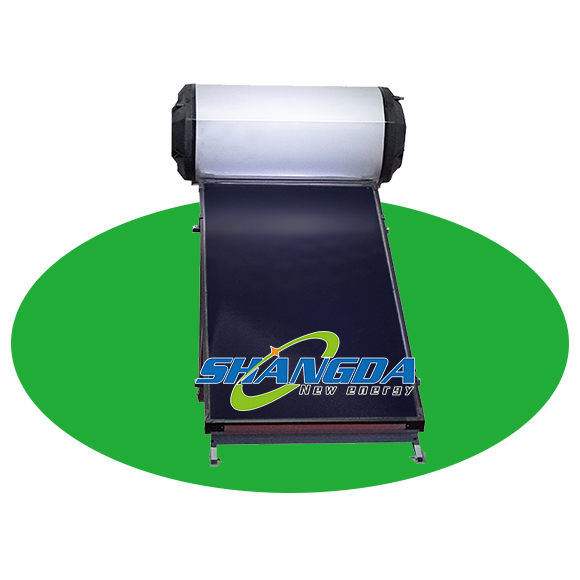

● Compact pressurized flat plate solar water heater is composed of flat plate solar collector,

square profile pressurized water tank and bracket and other related accessories.

● Converting solar energy into heat energy mainly depends on flat plate solar collector.

● Solar energy through the transparent cover to the absorber with absorption layer. Most of

the solar radiation can be absorbed by the absorber, transmited into thermal energy.

● Transferred to the working medium like water in the copper fluid channel. In this way,

the working medium from the bottom entrance of the flat plate solar collector is heated by

solar energy in the copper fluid channel, and the temperature rises gradually.

● After heating, hot water can be stored in the square profile pressurized water tank for use.

Salient Characteristic：

‍【1】Square profile pressurized water tank adopt outstanding square profile design. ‍

【2】Tank middle have one anti-freeze layer design, So its suit for warm and

cold climate area both.

【3】The whole system pressurized, working pressure 0.60 Mpa, it keep a long time

constant temperature of water in the tank.

【4】The whole system pressurized, working pressure 0.60 Mpa, so can get more

comfortable hot water immediately when take bath.

【5】High thermal efficiency. Flat plate solar collector adopt Imported blue titanium coating,

absorbility 95±2%, emissivity 5±2%. (black chrome coating for optional).

【6】Safety & reliability, longer life span. In many foreign markets, flat plate solar water heater

has always been the mainstream product in the market.

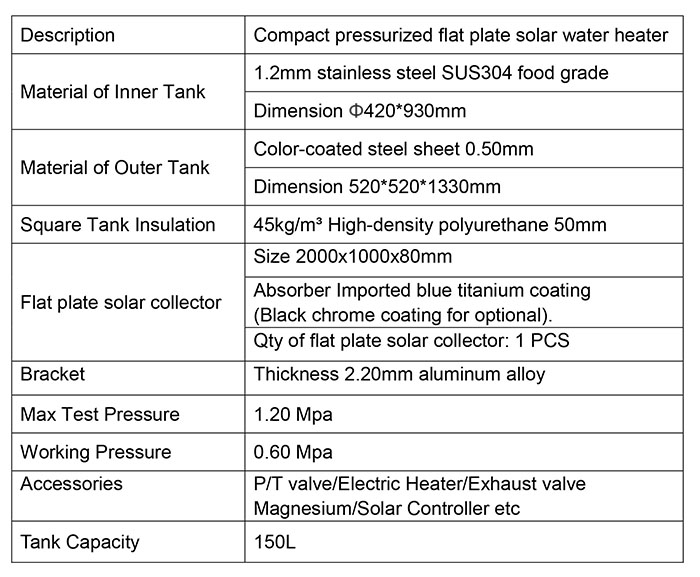

Technical Specification:
