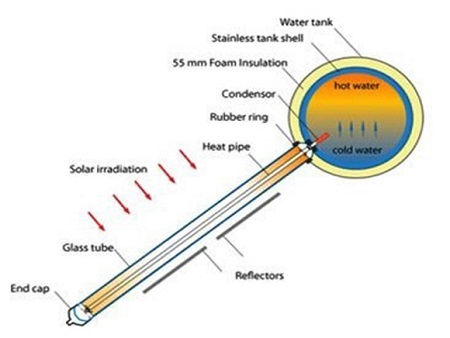

Working principle:

●Compact pressure solar water heater which is use of vacuum tube’s high absorbing ratio

and low emission ratio of coating, the absorption of solar radiation converted into thermal

energy, and transmit it to the copper heat pipes by aluminum fins.

●Through the phase change copper heat pipe, spread thermal energy to water tank rapidly,

make whole tank water temperature gradually increased.

●Due to phase change copper heat pipe with unidirectional heat transfer properties,

even if the cold area, all the year round all can run efficiently.

Salient Characteristic：

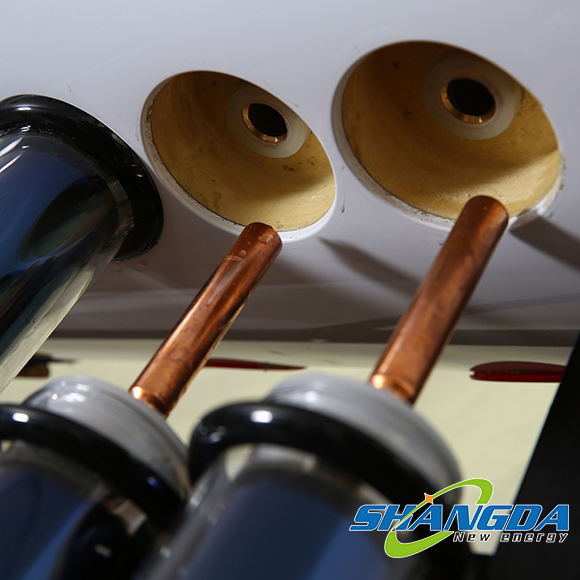

【1】Adopting the best conduction performance metal- copper TU1(heat pipe),

Which has good low temperature resistance,Can be used all year even in extremely cold area.

【2】High efficiency, warming fast. Heat pipe invacuum tube can transfer thermal energy to cold water

in pressurized solar water heater tank rapidly.

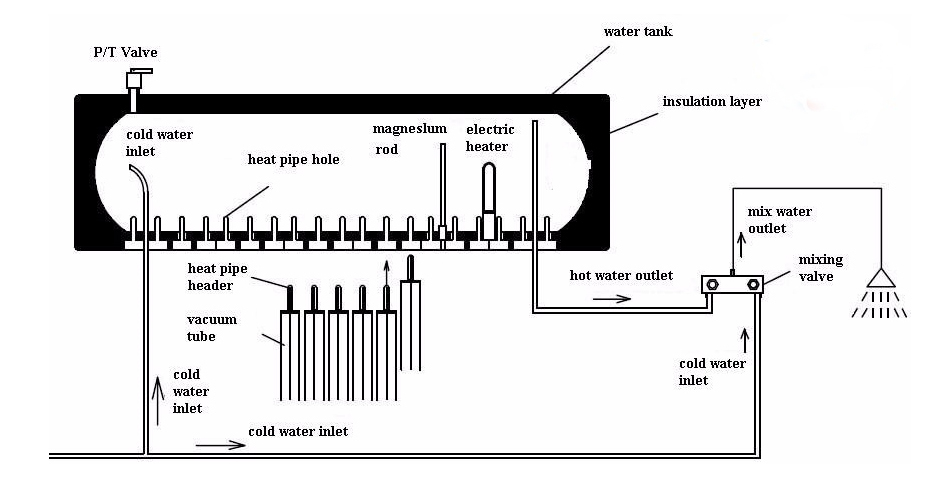

【3】The water tank using high frequency welding, no water running in the vacuum tubes, the whole system

 can Withstanding high working pressure 0.6MPa, can be connected directly with the tap water system,

we can enjoy comfortable shower at any time.

【4】No water running in the vacuum tubes, enabling the system still workable in case of occasional tube breakage.

【5】The whole system pressurized, it keep a long time constant temperature of water in the tank.

【6】Completely automatic operation with intelligent controller.

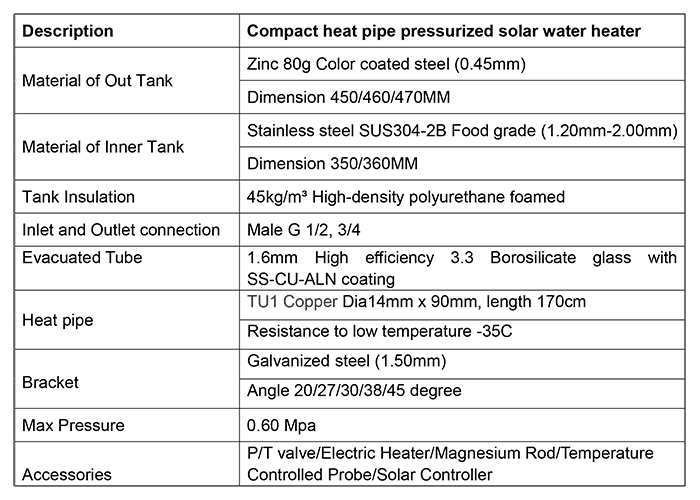

Technical Specification:

‍‍
