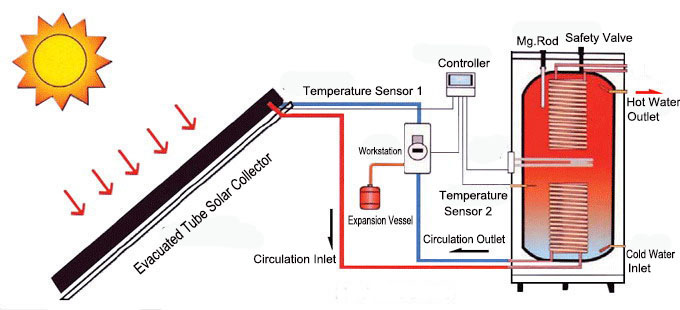

Working principle:

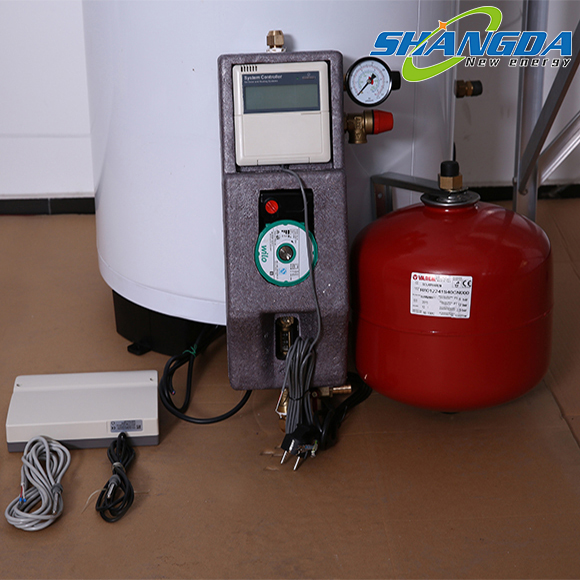

●Split pressurized solar water heater is composed of pressurized water tank, heat pipe solar collector,

solar work station,expansion vessel and intelligent controller etc.

●The heat pipe solar collector absorbs solar energy, converted into heat energy and transmits it to the

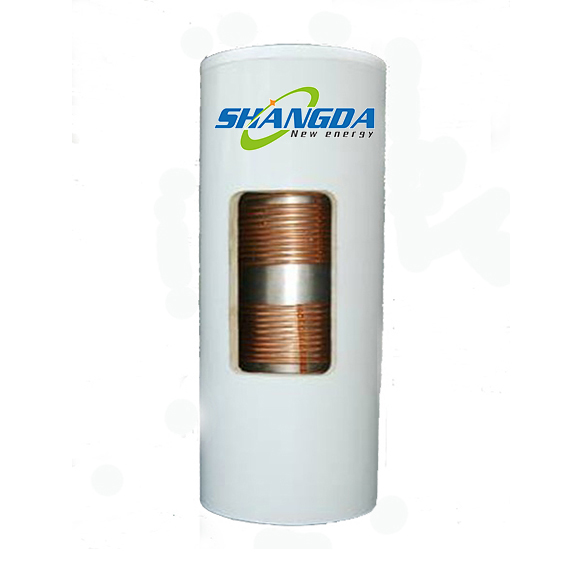

pressurized water tank through circulation between heat pipe solar collector and coiler heat exchanger

in pressurized water tank which control by solar controller.

●When the water temperature difference between heat pipe solar collector and pressurized water tank

 reach the set value, the circulation pump will be work automatically.

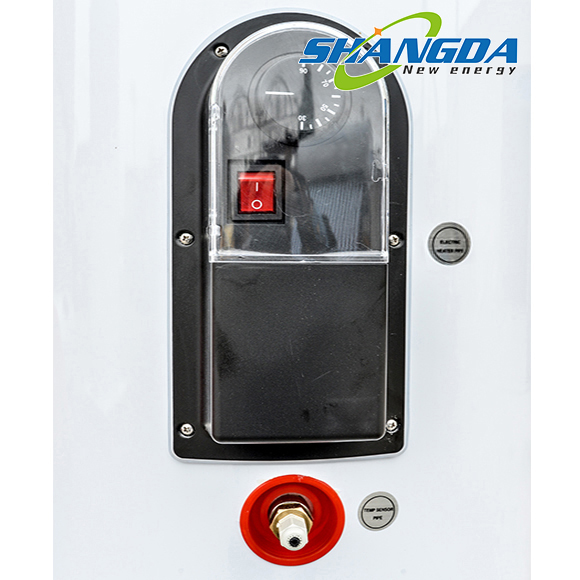

● Match electrical auxiliary heating system, when the temperature of the water tank does not reach Max

 temperature, electrical heating system will start to work automatically.

Salient Characteristic：

【1】Install separately, combine with the architecture perfectly

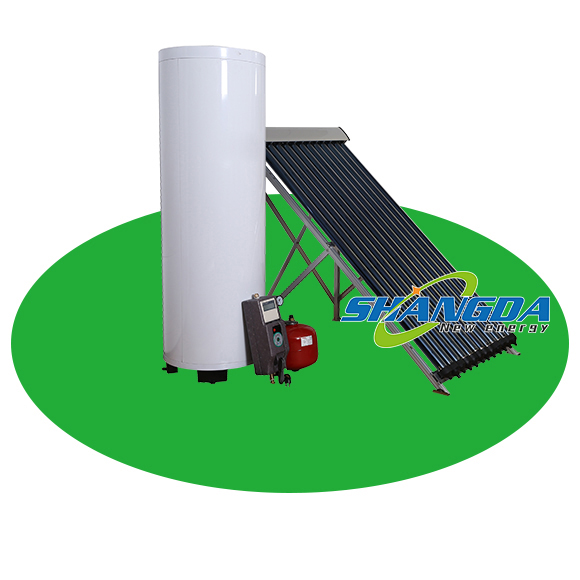

Heat pipe solar collector and pressurized water tank are separated, Heat pipe solar collector could be

installed on the roof or somewhere with sunshine, but pressurized water tank and solar work station

could be installed on anywhere of the building.

【2】‍Pressurized hot water, enjoy comfortable shower at any time
It applies pressure bearing design, no water flow in tube inside, system working pressure 0.6Mpa,

meantime match with intelligent work station and electric heater back up. when we switch-on at any time,

both have pressurized hot water immediately with strong water outgoing, large water quantity & flow.

【3】Completely automatic operation with intelligent controller.‍‍‍

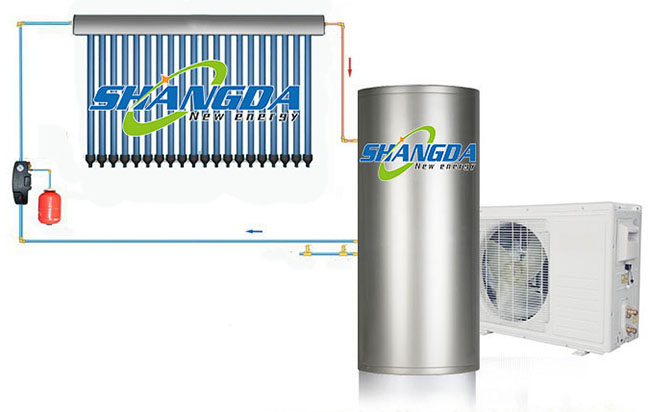

【4】Can combine with air source heat pump.

Split pressurized solar water heater is an active system, can combine with air source heat pump,

make sure to get hot water in 24 hours even under rainy days, and also make the whole system

with lowest electric consumed.

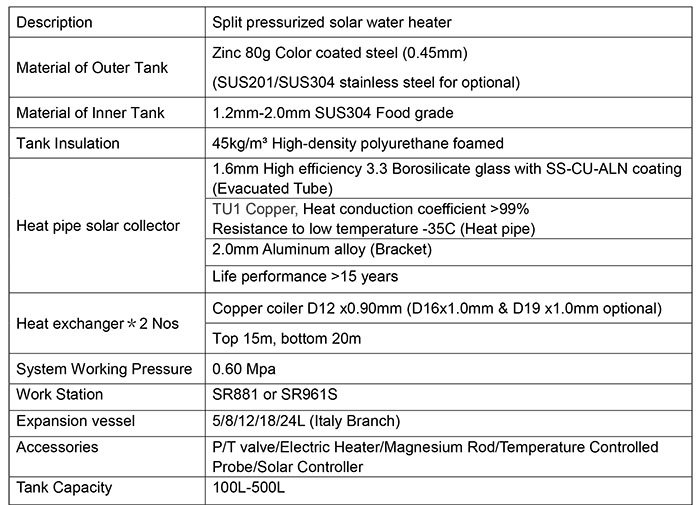

Technical Specification:
