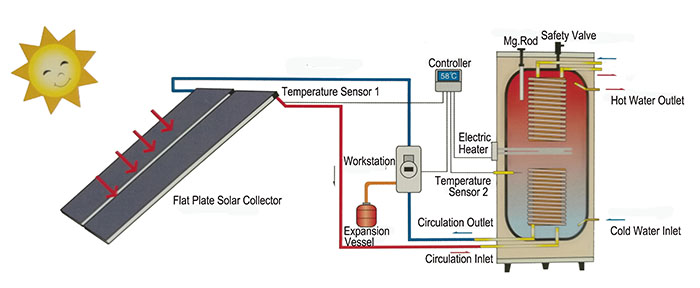

Working principle:

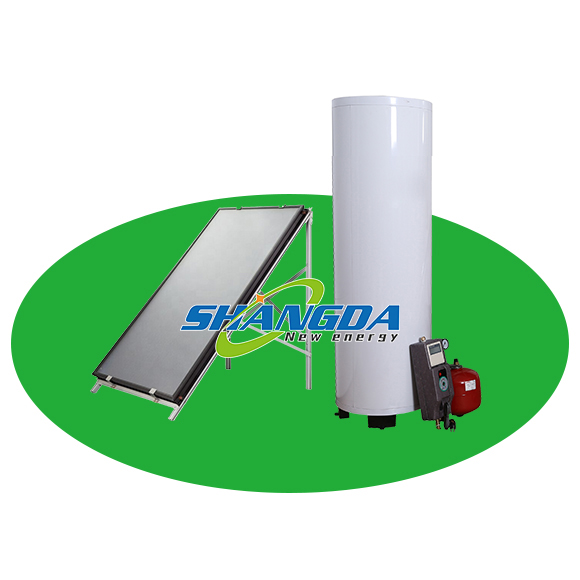

● Split pressurized flat plate solar water heater is an active system, is composed of pressurized

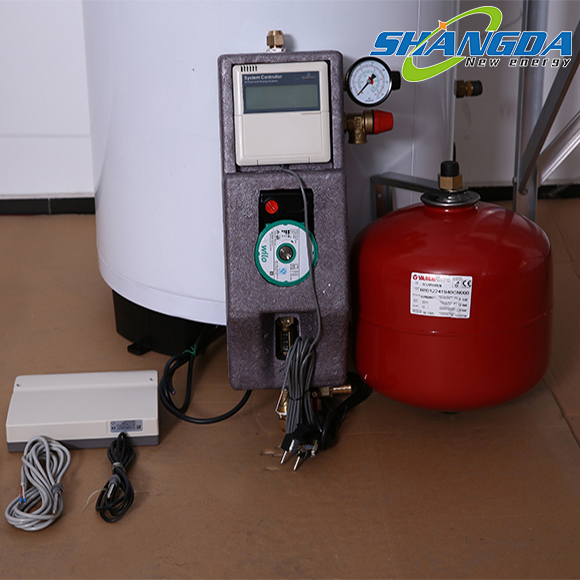

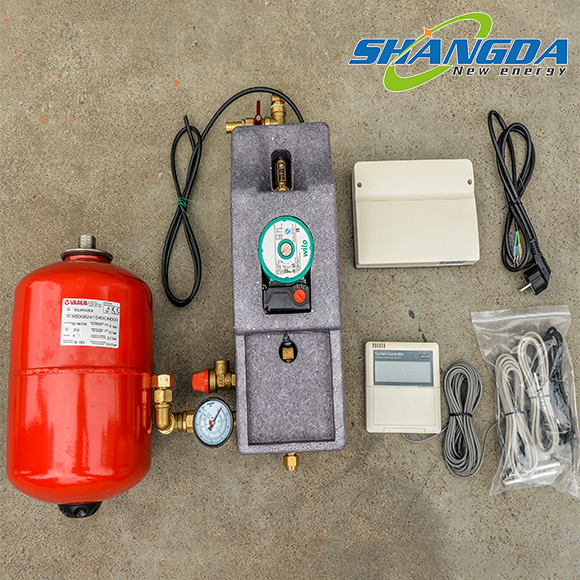

water tank, flat plate solar collector, solar work station,expansion vessel and intelligent controller etc.

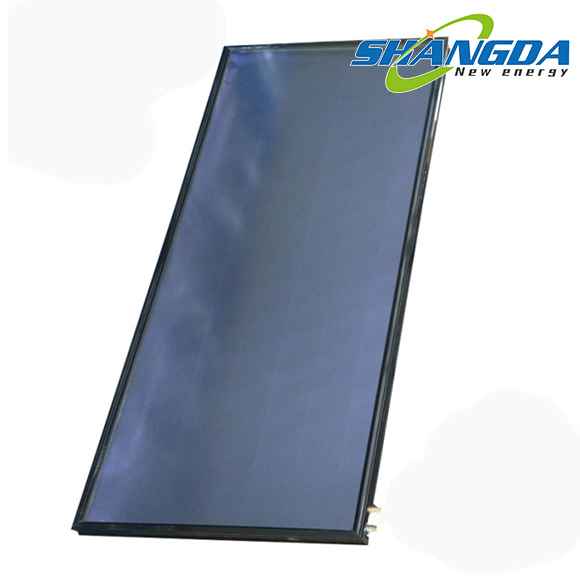

● The flat plate solar collector absorbs solar energy, converted into heat energy and transmits it to the

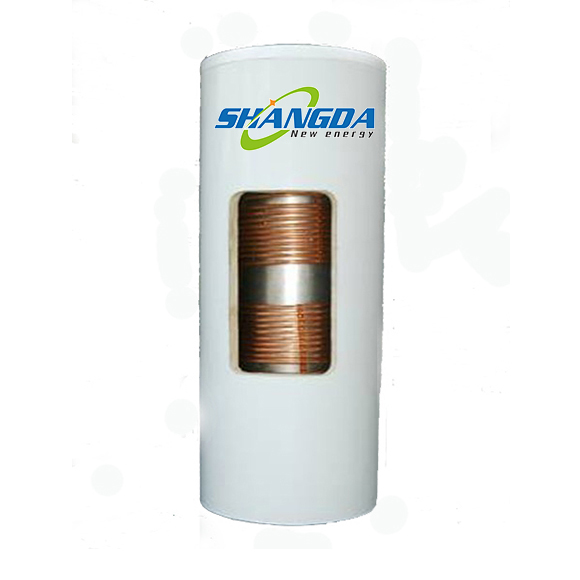

pressurized water tank through circulation between flat plate solar collector and coiler heat exchanger

in pressurized water tank which control by solar controller system.

● When the temperature difference between flat plate solar collector and pressurized water tank reach

the set value, the circulation pump will be work automatically.

● Match electrical auxiliary heating system, when the temperature of the water tank does not reach

Max temperature, electrical heating system will start to work automatically.

Salient Characteristic：

【1】Install separately, combine with the architecture perfectly

Flat plate solar collector and pressurized water tank are separate, flat plate solar collector could be

installed on the roof or somewhere with sunshine, but pressurized water tank and Solar work station

could beinstalled anywhere of the building.

【2】Pressure hot water, enjoy comfortable shower at any time
It applies pressure bearing design, flat plate solar collector and pressurized water tank both can bear

high pressure, the whole system working pressure 0.6Mpa, meantime match intelligent work station

and electric heater back up. when switch-on at any time, both have pressurized hot water immediately

with strong water outgoing, large water quantity & flow.

【3】Completely automatic operation with intelligent controller.

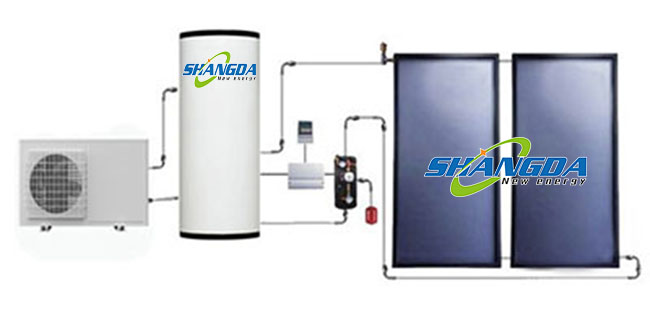

【4】Can combine with heat pump.

Split pressurized flat plate solar water heater is an active system, can combine with heat pump,

to make sure to get hot water in 24 hours and lowest electric consumed.

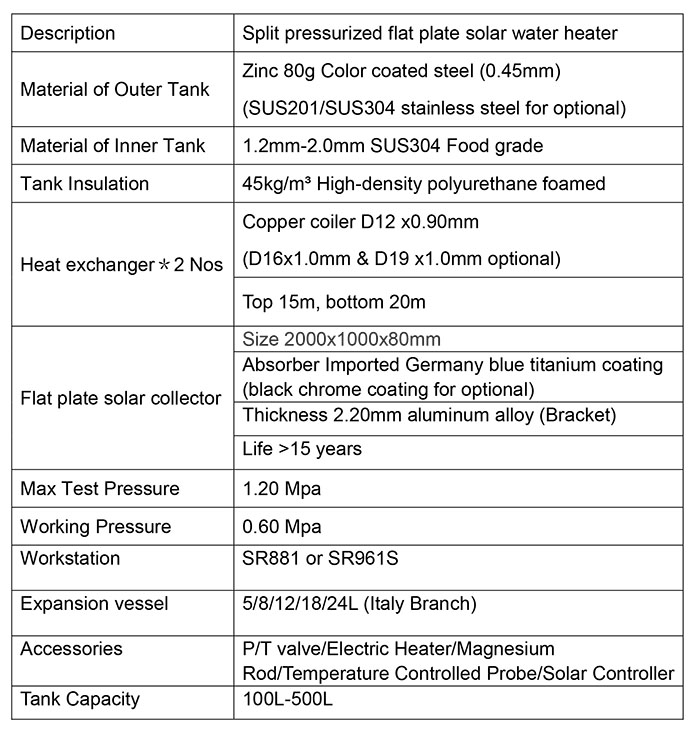

Technical Specification:
